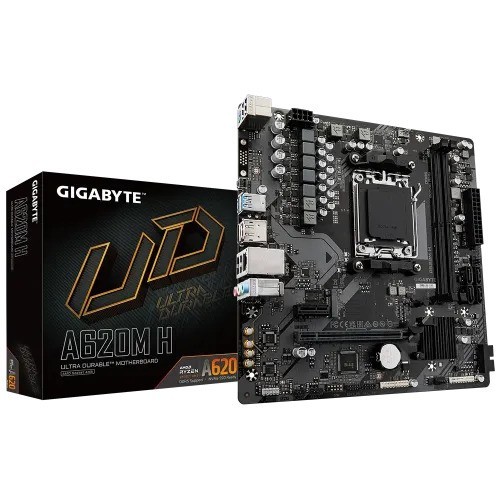

GIGABYTE A620M H AM5 Micro-ATX Motherboard

GIGABYTE A620M H AM5 Micro-ATX Motherboard
Save: 930৳
GIGABYTE A620M H AM5 Micro-ATX Motherboard
  • Stock: In Stock
  • Price:  10,900৳
  • Regular Price:  11,830৳
  • Product id:  6635
  • Brand: Gigabyte
  • Model: A620M H
Payment Option
Add to Cart
  • Model: A620M H
  • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x DisplayPort, 1 x HDMI
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Motherboard Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset AMD A620
Expansion Slots
PCI 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Motherboard Graphics Info
Graphics supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports (MB)
HDMI 1 x HDMI
USB (s) CPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Others
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty 3 Years
Description

GIGABYTE A620M H AM5 Micro-ATX Motherboard

Build a Ryzen desktop with the GIGABYTE A620M H AM5 Micro-ATX Motherboard from Sell Tech BD. Based on the AMD A620 chipset, this motherboard offers essential connectivity for a balanced home, office, study, or gaming PC.

The AM5 socket supports compatible AMD Ryzen 7000, 8000, and 9000 series processors. Check the CPU support list and required BIOS version before selecting your processor. Two DDR5 memory slots provide dual channel operation, with support for AMD EXPO and Intel XMP memory profiles. Supported memory speeds depend on your CPU, RAM, and configuration.

For storage, the GIGABYTE A620M H includes a PCIe 4.0 x4 M.2 connector and four SATA 6Gb/s ports. Pair it with a compatible NVMe SSD for your operating system and applications, then add SATA drives for documents, media, and backups.

The PCIe graphics slot lets you install a dedicated graphics card, with available bandwidth depending on the processor. HDMI and DisplayPort outputs support display connections when used with a compatible CPU featuring integrated graphics. Gigabit LAN provides wired networking, while USB connections accommodate everyday peripherals.

Smart Fan 6 provides fan controls to help manage cooling. Q-Flash Plus allows BIOS updates without installing a CPU, memory, or graphics card. Its Micro-ATX layout fits compatible cases, making it useful for compact desktop builds.

Choosing the right motherboard starts with your workload. Match your processor, memory capacity, storage, and graphics card to the applications you use. A planned configuration helps you spend where it matters, whether you need everyday productivity or a gaming setup.

Searching for the GIGABYTE A620M H motherboard price in Bangladesh? Contact Sell Tech BD for current pricing, stock availability, and warranty information. Explore compatible components on our ecommerce website or visit our showroom to discuss your build. Choose the A620M H as the foundation for your next AM5 desktop.
