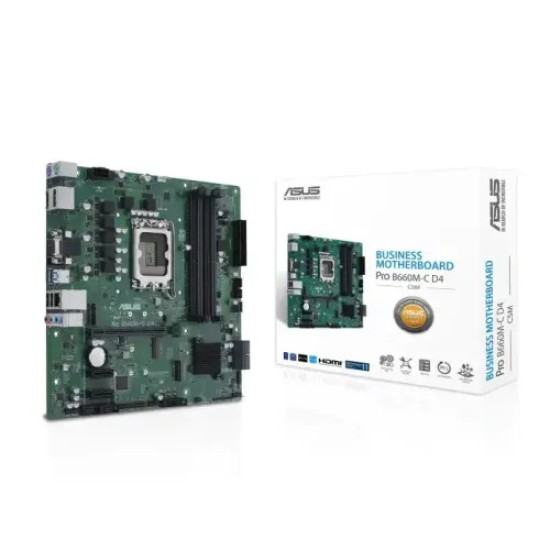

ASUS Pro B660M-C D4-CSM mATX Motherboard

MEGA OFFER save 1450 ৳

Stock: In Stock
Brand: Asus
Model: Pro B660M-C D4-CSM
Warranty: 3 Years

Featured Description:

Model: Pro B660M-C D4-CSM

Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)

Supported RAM: 4x DDR4, Max 128GB

Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI

Features: 1 x Intel 1Gb Ethernet

Based on 0 reviews. - Write a review

17,100৳

18,550৳

Cash Discount Price

Check available payment method
Contact for bulk quantity: 01875956323

17,989৳ / month

EMI Price *

Starting from 5,996৳/month, For Discount Price

Qty

Add to Cart

Buy Now Ask Question

WishList Compare

👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

Specification

Motherboard Basic Info
BIOS	128Mb Flash ROM
Form Factor	microATX 24.4cm x 24.4cm
Motherboard Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset	Intel B660 Chipset
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Memory Specifications
Type	DDR4
Motherboard Memory Info
Slots	4 x DIMM slots
Supported Memory	5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem
Maximum Memory	128GB
Connectivity
Display Port	2 x DisplayPort
Motherboard Graphics Info
Graphics	2 x DisplayPort 1 x D-Sub port 1 x HDMI port Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports (MB)
HDMI	1 x HDMI
USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet ASUS LANGuard
Audio	3 x Audio jacks
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
D-Sub (s)	1 x D-Sub
Supported Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots
Others
Special Features	ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard
Bundled Software	ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
Warranty Information
Manufacturing Warranty	3 years

Description

The ASUS Pro B660M-C D4-CSM mATX Motherboard is a reliable and business-ready motherboard designed for stable performance, long-term durability, and enterprise environments. Built on the Intel B660 chipset, it supports Intel 12th and 13th Gen Core processors on the LGA1700 socket, making it an excellent choice for professional workstations, office PCs, and commercial system integrators.

This motherboard supports DDR4 memory, providing dependable performance and cost-effective upgrades while maintaining compatibility with widely available components. Its robust power delivery and ASUS-engineered thermal solutions help ensure stable operation during long working hours and demanding multitasking scenarios.

As part of the ASUS Corporate Stable Model (CSM) program, the Pro B660M-C D4-CSM offers extended product lifecycle support, firmware stability, and enterprise-grade validation. These features make it ideal for businesses that require consistent hardware availability and reduced maintenance costs. ASUS also integrates advanced protection technologies such as 5X Protection III, safeguarding critical components from power surges, overcurrent, and electrostatic discharge.

The compact micro-ATX form factor allows the motherboard to fit easily into a wide range of office and commercial PC cases while still providing essential connectivity options, including PCIe expansion, USB ports, and high-quality networking support. The intuitive ASUS UEFI BIOS ensures easy system configuration and management, even for IT administrators handling multiple systems.

Whether you are building a professional workstation, upgrading office infrastructure, or deploying large-scale commercial systems, the ASUS Pro B660M-C D4-CSM mATX Motherboard delivers dependable performance, long-term stability, and business-focused features you can trust.
