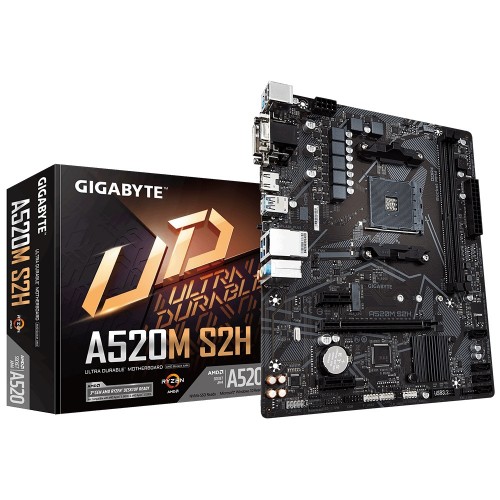

Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard

Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard
Out Of Stock
Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  3532
  • Brand: Gigabyte
  • Model: Gigabyte A520M S2H Ultra Durable
Based on 0 reviews. - Write a review
  • Model: Gigabyte A520M S2H Ultra Durable
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Smart Fan 5 Features
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2
  • 4+3 Phases Pure Digital VRM Solution
View more info
Specification
Motherboard Basic Info
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Graphics Specifications
Max Shared Memory 16 GB
Motherboard Memory Info
Type Dual channel memory architecture
Motherboard Memory Info
Slots 2 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Maximum Memory 64 GB
Motherboard Graphics Info
Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Connector & Ports (MB)
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s) CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Warranty Information
Warranty 03 years
