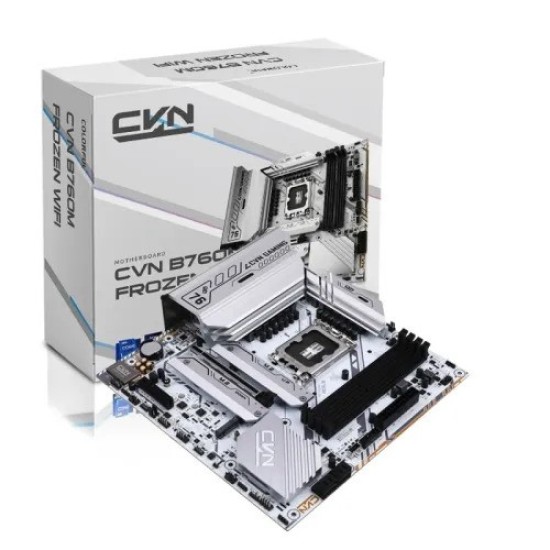

Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard

MEGA OFFER save 2470 ৳

Stock: In Stock
Brand: Colorful
Model: CVN B760M FROZEN WIFI V20

Featured Description:

Model: CVN B760M FROZEN WIFI V20

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Supported RAM: 4x DDR4, Max 128GB 4800(OC)

Graphics Output: 1x HDMI, 1x DisplayPort

Features: RTL8125 2.5Gbit network card, WiFi 6 wireless

Based on 0 reviews. - Write a review

21,400৳

23,870৳

Cash Discount Price

Check available payment method
Contact for bulk quantity: 01875956323

22,513৳ / month

EMI Price *

Starting from 7,504৳/month, For Discount Price

Qty

Add to Cart

Buy Now Ask Question

WishList Compare

👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

Specification

Motherboard Basic Info
BIOS	128M UEFI, supporting multiple languages
Form Factor	M-ATX 245mm x 245mm
Motherboard Basic Information
Supported CPU	Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Chipset	Intel B760
Expansion Slots
PCI	1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot
Memory Specifications
Type	DDR4
Gaming Features
Graphical UI	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Motherboard Memory Info
Slots	4
Supported Memory	- DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology
Maximum Memory	128 GB of memory (a single socket can support up to 32 GB of memory)
Connector & Ports (MB)
HDMI	1x HDMI
LAN Port (s)	RTL8125 2.5Gbit network card
Internal I/O Ports	Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces (audio input/audio output/microphone) - 1×BIOS update button On board device interface: - 1×CPU fan pin - 3×system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper
Supported Storage	A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
Warranty Information
Manufacturing Warranty	3 years

Description

In terms of expansion, the motherboard features one PCIe 5.0 x16 slot for high-performance graphics cards, and multiple M.2 slots (with heatsinks) for NVMe SSDs, ensuring lightning-fast storage and data transfer speeds. SATA 6Gb/s ports are also available for traditional HDDs and SSDs.

The rear I/O includes multiple USB 3.2 Gen 1/Gen 2 ports, HDMI and DisplayPort for integrated graphics output, and high-quality 7.1 channel audio powered by Realtek for immersive sound. Its reinforced PCIe slots and high-quality capacitors ensure durability and longevity under intense workloads.

The board also includes ARGB headers, BIOS FlashBack, and intelligent fan controls, giving users flexibility and customization options. Its advanced thermal design, with aluminum heatsinks and optimized airflow layout, helps maintain lower temperatures even during demanding tasks.

Whether you’re building a compact gaming PC, a home studio setup, or a powerful small-form-factor workstation, the Colorful CVN B760M FROZEN WIFI V20 provides a reliable foundation. Its perfect combination of aesthetics, performance, and next-gen features makes it a standout option in the B760 lineup.

Key Features:

- Supports 12th/13th/14th Gen Intel CPUs (LGA1700)

- Intel B760 Chipset

- Supports up to 128GB DDR5 RAM

- PCIe 5.0 x16 slot for high-end GPUs

- Dual M.2 slots with heatsinks

- Integrated Wi-Fi 6 + Bluetooth 5.2

- 2.5G LAN for ultra-fast ethernet

- USB 3.2 Gen 2, HDMI, DisplayPort, and HD Audio

- mATX Form Factor – Ideal for compact builds

Choose the Colorful CVN B760M FROZEN WIFI V20 motherboard for superior reliability, performance, and design in a mid-range gaming or productivity setup.

Let me know if you also want meta tags or schema markup for this product.

SEO Description (500 Words) for Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard:

The Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard is a premium-grade motherboard built to meet the demands of gamers, creators, and professionals looking for top-tier performance in a compact form factor. Powered by the Intel B760 chipset, it supports the latest 12th, 13th, and 14th Gen Intel Core processors with the LGA1700 socket, delivering an excellent balance of speed, efficiency, and connectivity.

Designed with a stunning Frozen White aesthetic, this motherboard not only performs exceptionally but also adds a unique visual appeal to your gaming rig or creative workstation. It supports DDR5 memory, offering higher bandwidth and lower power consumption compared to DDR4. You can install up to 128GB of DDR5 RAM with speeds up to 5600MHz (OC), ensuring blazing-fast multitasking, content creation, and gaming.

Connectivity is where the CVN B760M FROZEN WIFI V20 truly shines. It includes integrated Wi-Fi 6 and 2.5G LAN, offering both wireless and wired networking solutions for ultra-fast and stable internet connections. With Bluetooth 5.2, pairing wireless peripherals is seamless and efficient.
