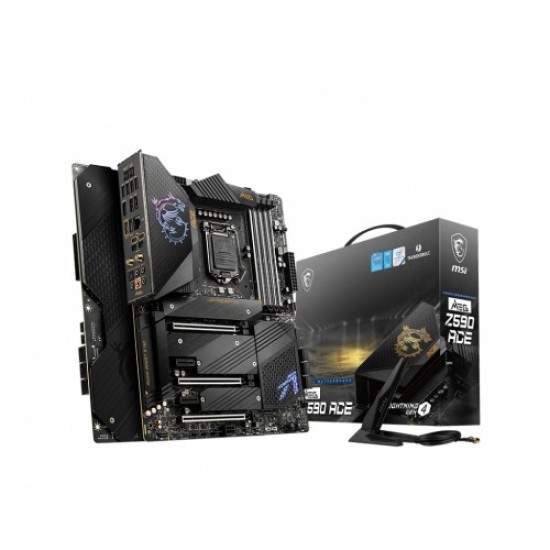

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
Out Of Stock
MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
  • Stock: Out Of Stock
  • Brand: MSI
  • Model: MEG Z590 ACE Gaming
Featured Description:
  • Model: MEG Z590 ACE Gaming
  • Supports 11th and 10th Gen Intel Core / Pentium Celeron processors
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Quadruple M.2, LGA 1200 socket
  • 2.5G LAN with latest Wi-Fi 6E
    • Based on 0 reviews. - Write a review
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Information
    Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron® Processors1 Processor socket LGA1200
    Chipset Intel Z590 Chipset
    Expansion Slots
    PCI 3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset)
    Memory Specifications
    Type DDR4
    Motherboard Memory Info
    Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
    Motherboard Graphics Info
    Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1
    Connector & Ports (MB)
    USB (s) 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB connectors
    Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Tuning Controller connector
    Supported Storage 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_2, M2_3, M2_4 slots (from Z590 chipset)
    Warranty Information
    Manufacturing Warranty 03 years warranty

    Description

    MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

     MSI MEG Z590 ACE Gaming Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600 (OC) MHz, The motherboard has Thunderbolt USB-C at true 40 Gb/ s pets, 8K display support, Daisy-Chaining andMulti-Port Accessory Architecture give dependable connectivity and better stoner experience. The Motherboard comes with Extreme Power Design, that INTERSIL digital PWM, 16 2 1 phases with 90A Smart Power Stage, binary CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors. The Motherboard has Outstanding Cooling Result, that Aluminum Cover, VRM Heat- pipe, 7W/ mK thermal pads,M. 2 Shield Frozr and Aluminum Backplate insure the extreme performance with low temp. It has2.5 G LAN with rearmost Wi-Fi 6E Onboard2.5 G LAN with LAN director and rearmost Wi-Fi 6E result which supports 6 GHz diapason delivering the stylish online gaming experience. The Motherboard has One button with multiple tackle control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click. It's also featured with 8 Subcaste PCB with 2oz Thickened Bobby, that Provides advanced performance and long- lasting system stability without any concession. Then, the Ultimate audio result with rearmost decoration ALC4082 audio processor combining ESS audio DAC and amplifier deliver the stirring experience. This rearmost MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard has 03 times bond.


    Questions

    Have question about this product? Get specific details about this product from expert.

    No questions have been asked about this product.

    Reviews

    Write a review

    Note: HTML is not translated!
    Bad Good

    What is The Latest MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard Price in Bangladesh?

    The MSI MEG Z590 ACE Gaming MSI ( Intel ) price 2026 in bangladesh is in today's 22-02-2026 BD market. Buy original MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard at the lowest price from Sell Tech website or visit our shop. The MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard manufacturing by MSI comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.
    Tags: MEG Z590 ACE Gaming
