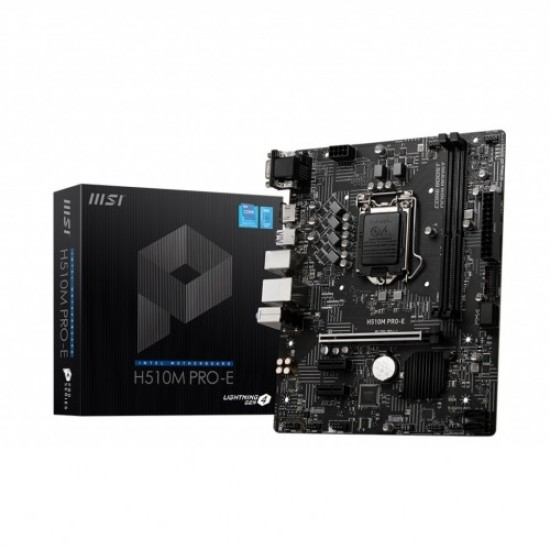

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard
Out Of Stock
MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard
  • Stock: Out Of Stock
  • Brand: MSI
  • Model: H510M PRO-E
Featured Description:
  • Model: H510M PRO-E
  • Supports 10th Gen Core, 11th Gen Core, Pentium Gold & Celeron for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • With premium layout and digital power design
  • Lightning Fast Experience: PCIe 4.0
  • 👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Info
    Form Factor mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm)
    Motherboard Basic Information
    Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
    Chipset Intel H510 Chipset
    Expansion Slots
    PCI 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From PCH)
    Memory Specifications
    Type DDR4
    Motherboard Memory Info
    Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
    Maximum Memory up to 64GB
    Motherboard Graphics Info
    Graphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
    Connector & Ports (MB)
    HDMI 1x HDMI 1.4 port
    USB (s) Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
    Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x USB 2.0 connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector
    Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset)
    Warranty Information
    Manufacturing Warranty 03 years warranty

    Description

    MSI H510MPRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

     The MSI PRO series helps druggies work smarter by delivering an effective and productive experience. Featuring stable functionality and high- quality assembly, PRO series motherboards give not only optimized professional workflows but also lower troubleshooting and life. MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 3200 (Max) MHz. The Motherboard featured with decoration layout and digital power design to support more cores and give better performance, DDR4 Boost Advanced technology to deliver pure data signals for the stylish performance and stability, Lightning Fast Experience PCIe4.0. It's Guarding VGA cards against bending and EMI for better performance, stability and strength. Then, MSI lightning Gen 4 PCI-E is the rearmost and the fastest PCI-E data transfer result with 64GB/ s of transfer bandwidth that has doubled compared to its former generation. PCIe4.0 maintains both backward and forward comity with aged and newer specifications. It's Optimized by sword armor design, your motherboards can support the weight of heavy plates cards. The Detecting CPU & GPU temperatures and automatically conforming addict duty of system suckers to a proper value by espousing MSI AI ENGINE. The rearmost MSI H510MPRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard has 03 times bond.
