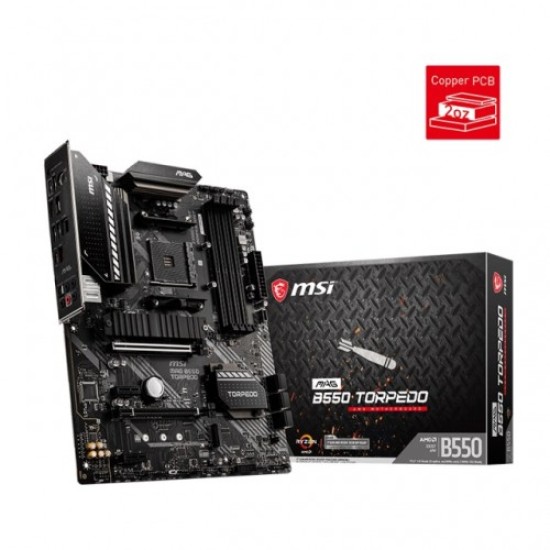

MSI MAG B550 TORPEDO AM4 ATX Motherboard
- Stock: Up Coming
- Brand: MSI
- Model: MAG B550 TORPEDO
Model: MAG B550 TORPEDO
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 5100+(OC) MHz
10+2+1 Duet Rail Power System
Premium Thermal Solution
Specification
| Motherboard Basic Info | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Motherboard Basic Information | |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Expansion Slots | |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Expansion Slots | |
| M.2 Socket | M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| Memory Specifications | |
| Type | DDR4 |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Motherboard Memory Info | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE 1DPC 1R max speed 4866 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Maximum Memory | 128GB |
| Motherboard Graphics Info | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz Supports 2-Way AMD CrossFire Technology |
| Connector & Ports (MB) | |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |
Description
MSI MAG B550 TORPEDO AM4 ATX Motherboard
The Diurnal series was born through rigorous quality testing and designed to be a symbol of soundness and continuity. Concentrated on furnishing the stylish stoner experience, the Diurnal series has a simple installation process coupled with a friendly stoner interface making it the stylish choice for entry position gamers.
Decoration Tackle DESIGN
With further cores’processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures indeed high- end CPU to run in full speed with MSI motherboards. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design,M. 2 Shield Frozr is the coming generationM. 2 thermal result to avoid this by offering the stylish thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage pets and temperatures for all your system and CPU suckers. Total Fan Control allows you check your primary system characteristics in a simplified visual interface. You can also set up to 4 temperature targets for CPU and motherboard, which will acclimate the addict pets automatically. Designed to support the most popular All-In-One & customized water cooling results on the request. A devoted water pump Leg title supports up to 3 amp, giving you full control of the water pump speed. A easily pronounced‘ keep-out- zone’allows for easy and safe installation and a perfect fit.
ENHANCED PERFORMANCE
MSI B550 motherboards support all the rearmost storehouse norms, which allows druggies to connect anyultra-fast storehouse device. Advanced effectiveness makes your work lightly.
CONNECTIVITY
Diurnal B550 TORPEDO features high-bandwidth and low- quiescence2.5 G LAN for demanding generators and power druggies. Onboard2.5 Gbps connectivity provides inconceivable data transfer speed briskly than ever ahead. MSI LAN Manager automatically classifies and prioritizes the quiescence-sensitive for your operations, giving you the stylish online experience with low quiescence. MSI LAN Manager automatically classifies and prioritizes the quiescence-sensitive operations for online games, giving you the stylish online gaming experience with low quiescence.
