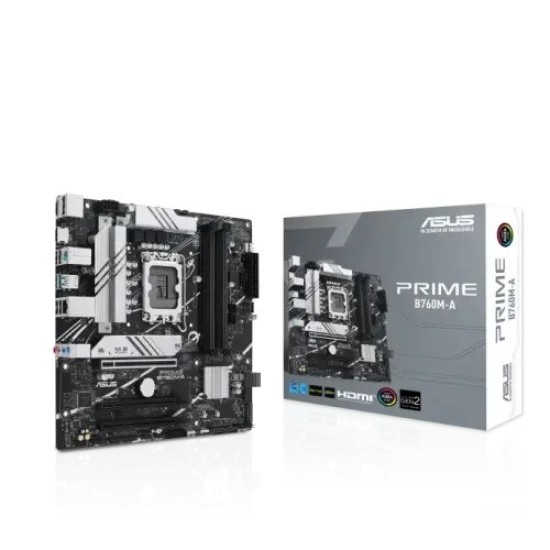

Asus PRIME B760M-A mATX Motherboard

Asus PRIME B760M-A mATX Motherboard
MEGA OFFER save 1630 ৳
Asus PRIME B760M-A mATX Motherboard
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME B760M-A
Featured Description:
  • Model: PRIME B760M-A
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR5
  • Graphics Output: 1 x DisplayPort, 2 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet
    • Based on 0 reviews. - Write a review
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Info
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Motherboard Basic Information
    Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Chipset Intel B760 Chipset
    Expansion Slots
    M.2 Socket Total supports 2 x M.2 slots
    Expansion Slots
    PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
    Memory Specifications
    Type DDR5
    Motherboard Memory Info
    Supported Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
    Motherboard Graphics Info
    Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
    Connector & Ports (MB)
    HDMI 2 x HDMI port
    USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
    Internal I/O Ports Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
    Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
    Others
    Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
    Warranty Information
    Manufacturing Warranty 3 years warranty

    Description

     The Asus PRIME B760M-A mATX Motherboard is a powerful and versatile motherboard designed to meet the needs of modern PC builders. Supporting Intel’s latest 12th and 13th Gen processors, this Micro-ATX motherboard offers excellent performance, advanced features, and reliable stability for both gaming and productivity.

    Built with high-quality components, the Asus PRIME B760M-A features support for DDR4 memory, allowing up to 128GB of RAM with speeds up to 5333 MHz (OC). This ensures smooth multitasking and faster data processing, making it perfect for heavy workloads and demanding applications.

    The motherboard includes multiple PCIe slots, including PCIe 4.0 support for high-speed graphics cards and NVMe M.2 SSDs. With dual M.2 slots and comprehensive storage options, users can enjoy ultra-fast read/write speeds and ample storage capacity, enhancing overall system responsiveness.

     Connectivity is a strong point of the PRIME B760M-A. It comes equipped with USB 3.2 Gen 2 ports, HDMI and DisplayPort outputs for integrated graphics, and Gigabit Ethernet for stable wired internet connections. Additionally, the motherboard supports ASUS-exclusive features such as AI noise cancellation, ASUS OptiMem for improved memory stability, and ASUS 5X Protection III for hardware durability and longevity.

    This motherboard is ideal for gamers, content creators, and professionals looking for a reliable, future-proof platform without compromising on performance. Its Micro-ATX form factor fits well in compact PC cases, offering flexibility in building space-saving setups.

    Furthermore, the Asus PRIME B760M-A motherboard is compatible with Windows 10 and 11, providing broad software support. The BIOS interface is user-friendly, allowing easy overclocking and system tuning for enthusiasts.

    In summary, the Asus PRIME B760M-A mATX Motherboard combines solid performance, advanced features, and robust build quality at an affordable price. It is an excellent choice for anyone looking to build a mid-range PC with the latest Intel processors, fast memory support, and future-ready connectivity.

    Key Features:

    - Supports Intel 12th and 13th Gen processors (LGA1700 socket)

    [14:07, 11/07/2025] ChatGPT: - DDR4 memory support up to 5333 MHz (OC)

    - Dual M.2 slots with PCIe 4.0 support

    - USB 3.2 Gen 2 ports and multiple display outputs

    - ASUS 5X Protection III for hardware durability

    - AI noise cancellation technology

    - Compact Micro-ATX form factor

    Choose the Asus PRIME B760M-A motherboard for a balanced mix of performance, reliability, and modern features, perfect for gaming, work, and everyday computing.
